| Input Interface | HDMI |
|---|---|
| Output Interface | LVDS FFC 40pin/TTL FFC 50pin/TTL FFC 40pin |
| Max Resolution | 1920 x 1200 |
| LVDS Signal Output Voltage | 3.3V/5V |
| Backlight Output Voltage | 9V to 29V |
| Input Voltage | DC 12V |
| Operating Temperature | -20℃ to +80℃ |

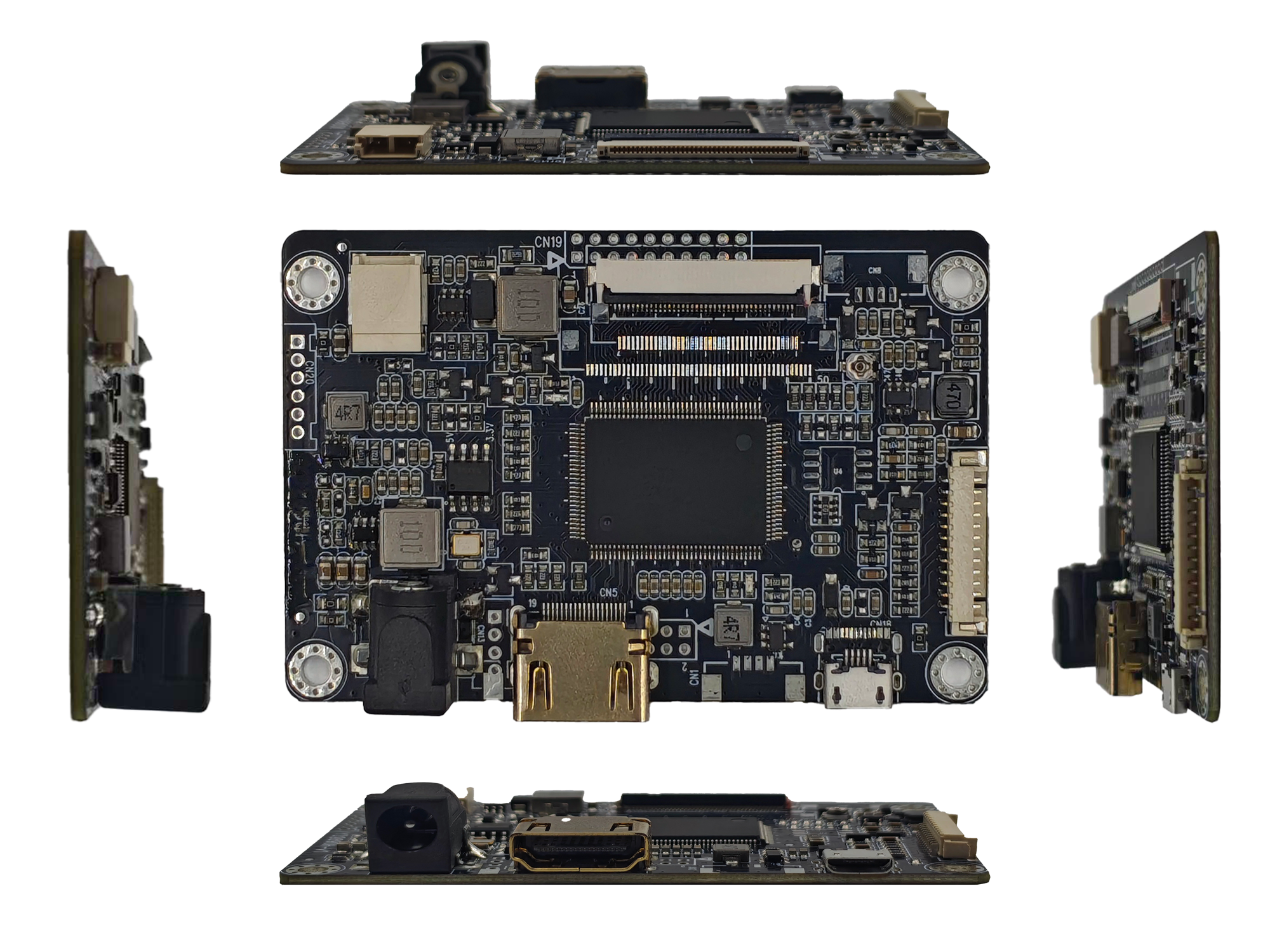

This is a high performance HDMI driver board designed for TFT LCD panels. It integrates T CON timing control and LED backlight driver, directly driving LVDS/TTL interface LCD modules without external T CON. Supports resolutions up to 1920×1200, wide voltage input, wide temperature, and OSD control. Widely used in industrial displays, medical devices, automotive, advertising players, and embedded systems.
FFC-0.5mm-40pin LVDS Interface:
FFC-0.5mm-50pin RGB Interface:
FFC-0.5mm-40pin RGB Interface:
Installation & Notes
- ESD protection required during installation
- Separate signal cables and backlight cables to avoid interference
- Recommended refresh rate: 60Hz for stable display
- Ensure sufficient ventilation for heat dissipation
