SKY858HV-V1

SKY858HV-V1 LCD driver board is primarily designed for TFT LCDs, making it suitable for liquid crystal displays and other types of flat panel displays.
●Input Signal Types: Digital HD (HDMI), Analog (RGB, VGA)
●The board supports a wide voltage input range of 8V~18V, with a typical value of 12V. (Note: When the panel supply is 12V, the board supply must also be 12V.)
●Supports display resolutions from 800x480 to 1920x1200.
●The board features a built-in LED backlight driver circuit; it supports 9~25V voltage drive for small to medium-sized LED backlights.
●The board features a built-in T-CON circuit, allowing it to directly drive small to medium-sized LVDS LCDs that do not have a T-CON.
●Backlight power supply supports 5V/12V (default 12V), and supports PWM duty cycle adjustment for backlight brightness.

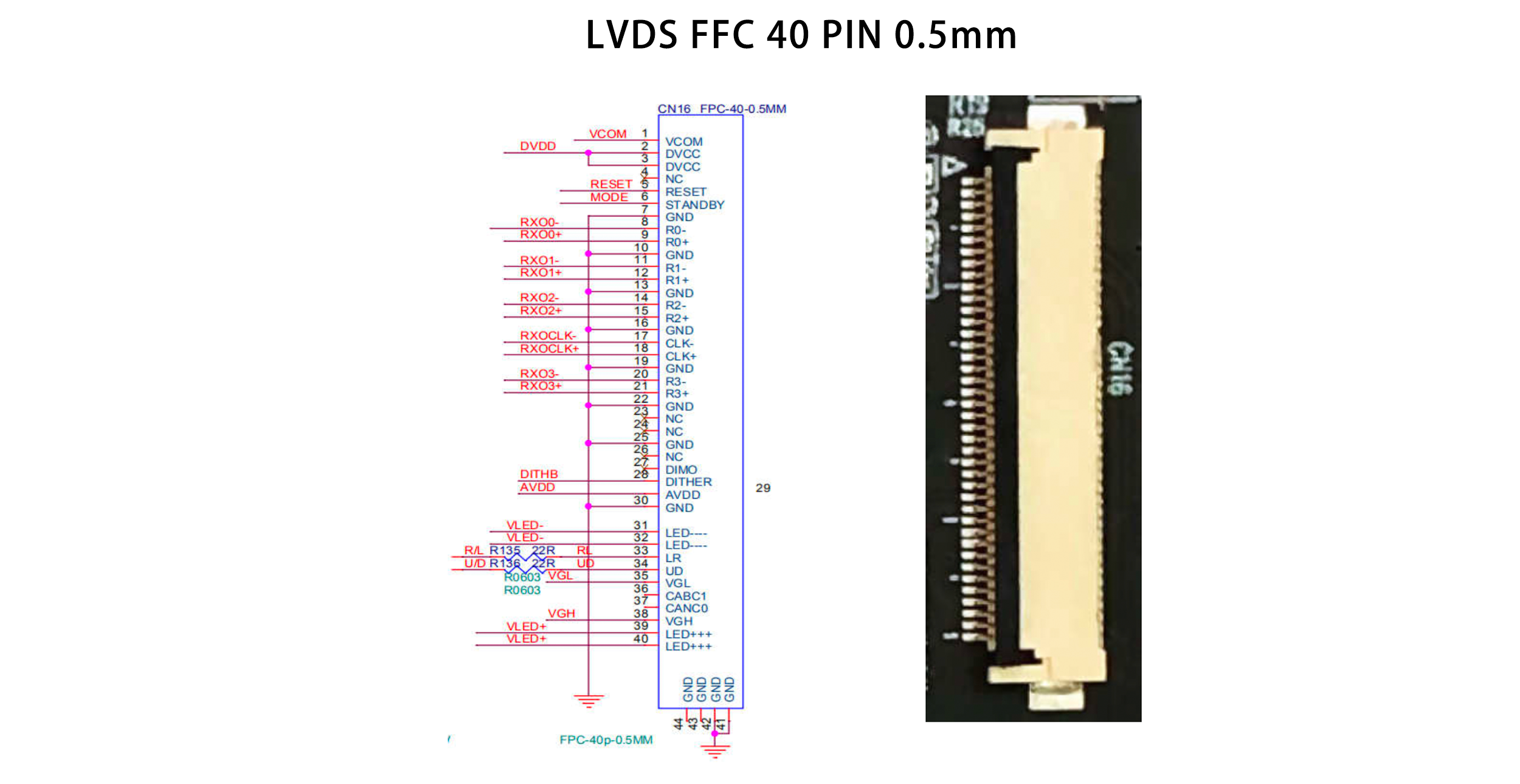

●Display Output Interface: LVDS Single 6-bit, LVDS Single 8-bit.
●PC Compatibility: Adapts to PC graphics cards via high-definition HDMI and analog RGB (VGA) inputs.
●Wide Operating Temperature Range: -10℃ to +70℃
Features: This board features simple operation and reliable performance.
