| Input Signal | HDMI/VGA/DVI |
|---|---|
| Output Signal | LVDS |
| Input Voltage | 12V |
| Backlight Output Voltage | 12V |
| LVDS Signal Voltage | 3.3/5/12V |
| Resolution Support | Up to 1920x1200 |
| Operating Temperature | -20°C to 80°C |

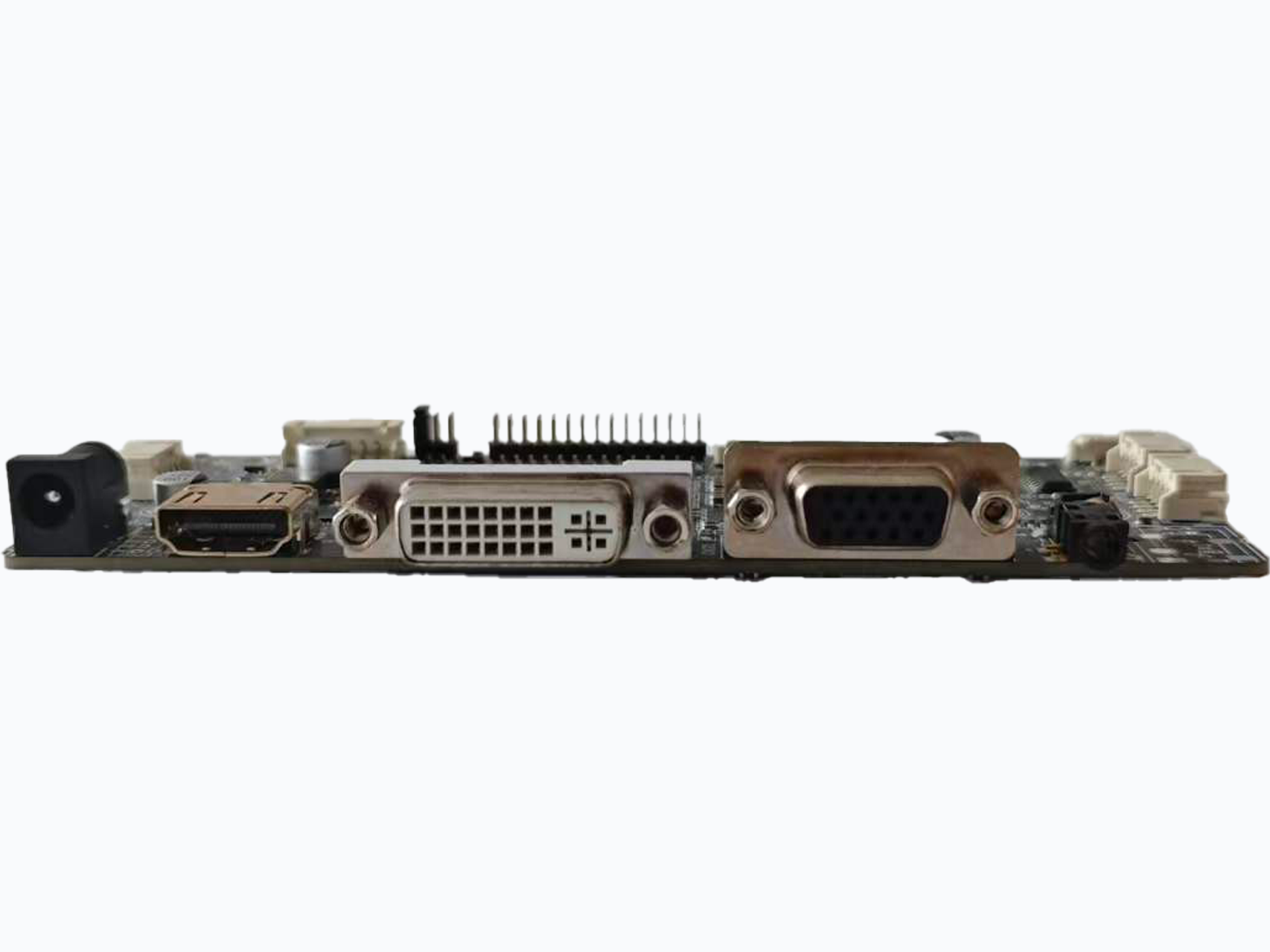

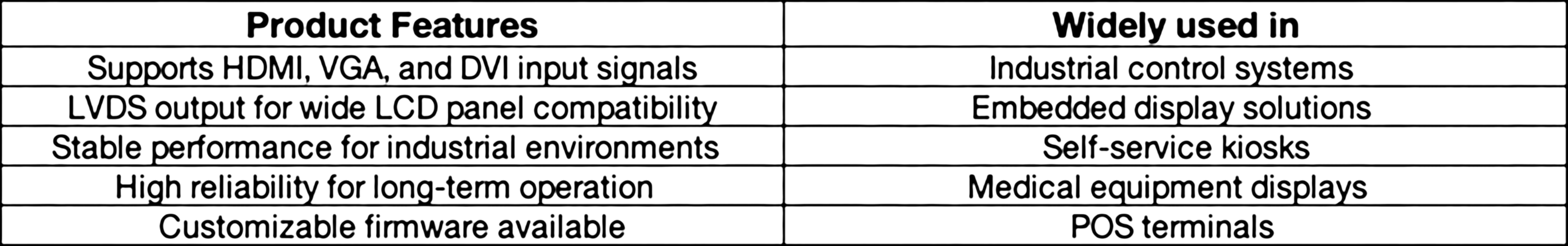

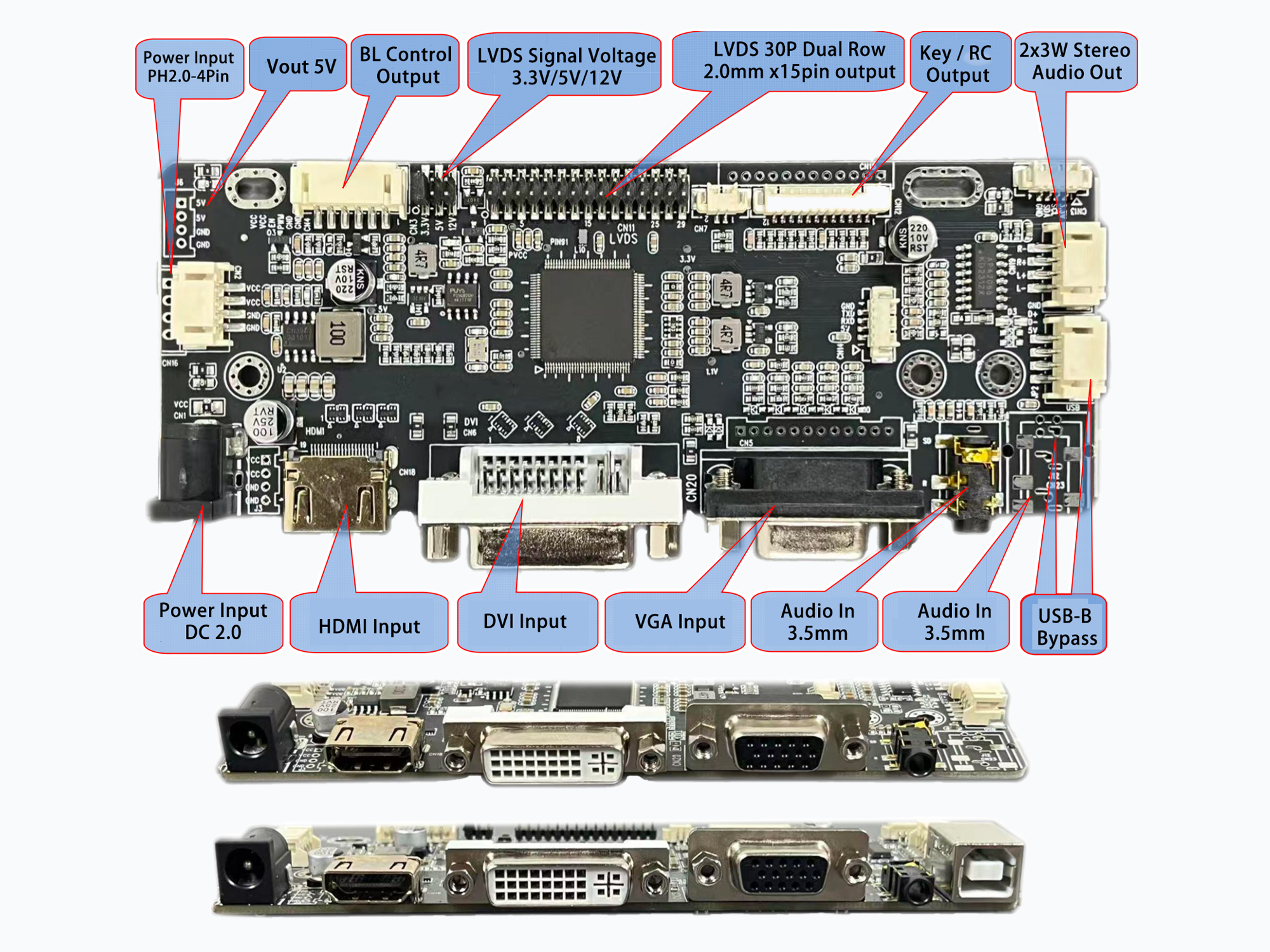

This industrial LCD controller board is designed to convert HDMI, VGA, and DVI signals into LVDS output for LCD panels. It offers stable performance, high compatibility, and flexible customization, making it ideal for industrial display and embedded system applications.
Dimension Drawing:

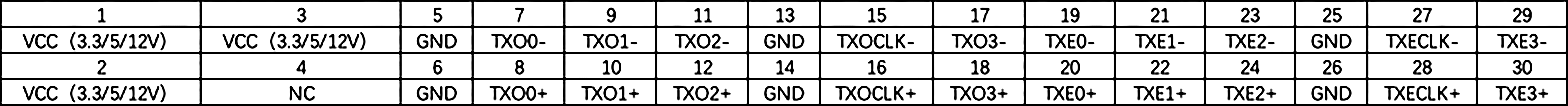

JST 2x15 Pin LVDS Output Interface：

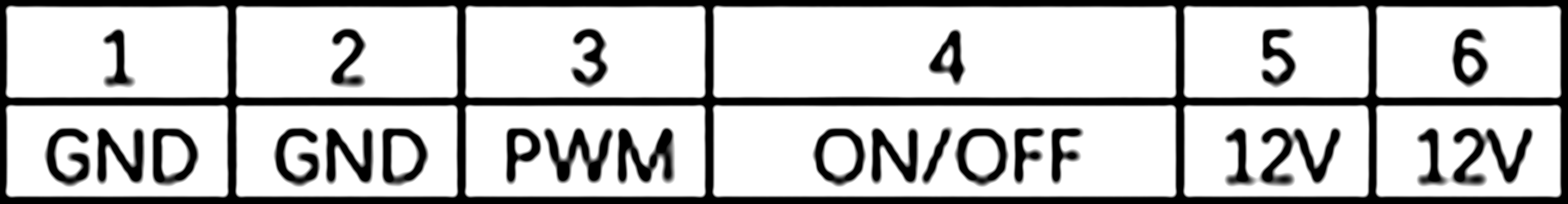

PH2.0mm-6PIN Backlight Interface:
We provide comprehensive customization services, including LVDS pinout matching, panel matching, firmware adjustment, and tailored hardware and OSD support.
