| Input Interface | LVDS |
|---|---|
| Output Interface | eDP |
| LVDS Power Supply | 3.3V（Min）/ 5V（Type） |
| Resolution Support | Up to 1920x1200 |
| Operating Temperature | -35℃ to +80℃ |
The LVDS to eDP converter board is designed to enable seamless signal conversion between LVDS input and eDP display panels. It is widely used in industrial displays, embedded systems, and upgrade projects requiring stable and high-speed signal transmission.
Dimension Drawing:
Product Features：
● Stable LVDS to eDP signal conversion
●Supports multiple LCD panel sizes
●High compatibility with industrial displays
●Compact design for embedded integration
●Custom interface and firmware available
Applications：
●Industrial automation systems
●Medical display devices
●Self-service kiosks
●Embedded control systems
●Display upgrade solutions

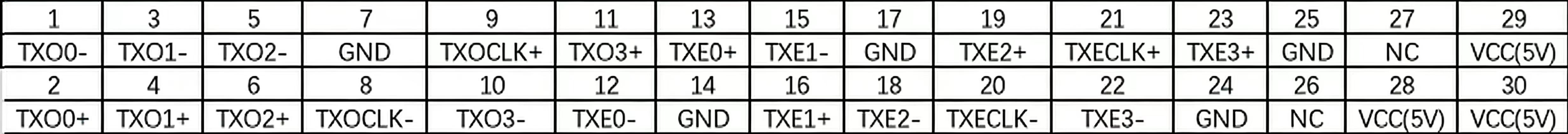

FI-XB30S LVDS Input Interface：

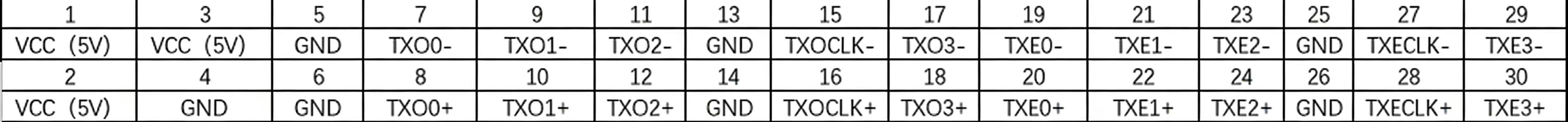

JST 2x15 Pin LVDS Input Interface：

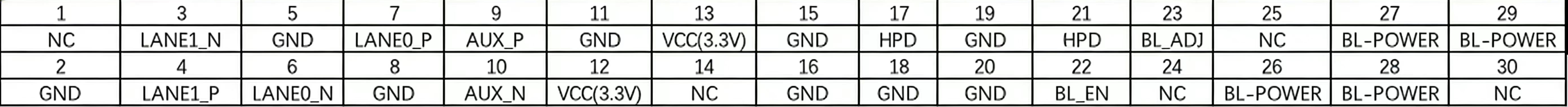

FFC-30Pin-0.5mm Pitch eDP Output Interface：
SKY–TDM provides customized solutions including interface design, firmware modification, and compatibility testing for different LCD panels and industrial environments.
