| Input Signal | Type-c, USB2.0 (USB-A/USB MICRO) |
|---|---|
| Input Voltage | 4.5～5V（USB 5V） |
| Operating Temperature | -30℃~ +80℃ |
| Supports Signal Output | 2×VGA, 2×HDMI, 1×DVI, PH2.0 burning header |
| Supported IC | Realtek RTD series |
This is a professional USB-RTD high-speed programmer designed for firmware burning and upgrading of Realtek RTD series display driver ICs. With stable USB ISP transmission, rich interfaces and industrial-grade performance, it is widely used in LCD driver board production, testing, maintenance and R&D.
Key Features：
●Professional RTD Programmer: A dedicated solution for programming Realtek RTD series display driver IC.
●Wide Compatibility: Supports popular models including RTD2785, RTD2555T, RTD2483, RTD2270, RTD2271, RTD2660, RTD2660H, RTD2556, RTD2795, and RTD2995.
●Flexible USB Connectivity: Features Type-C, Micro-USB, and USB 2.0 interfaces (supports connection via any available port).

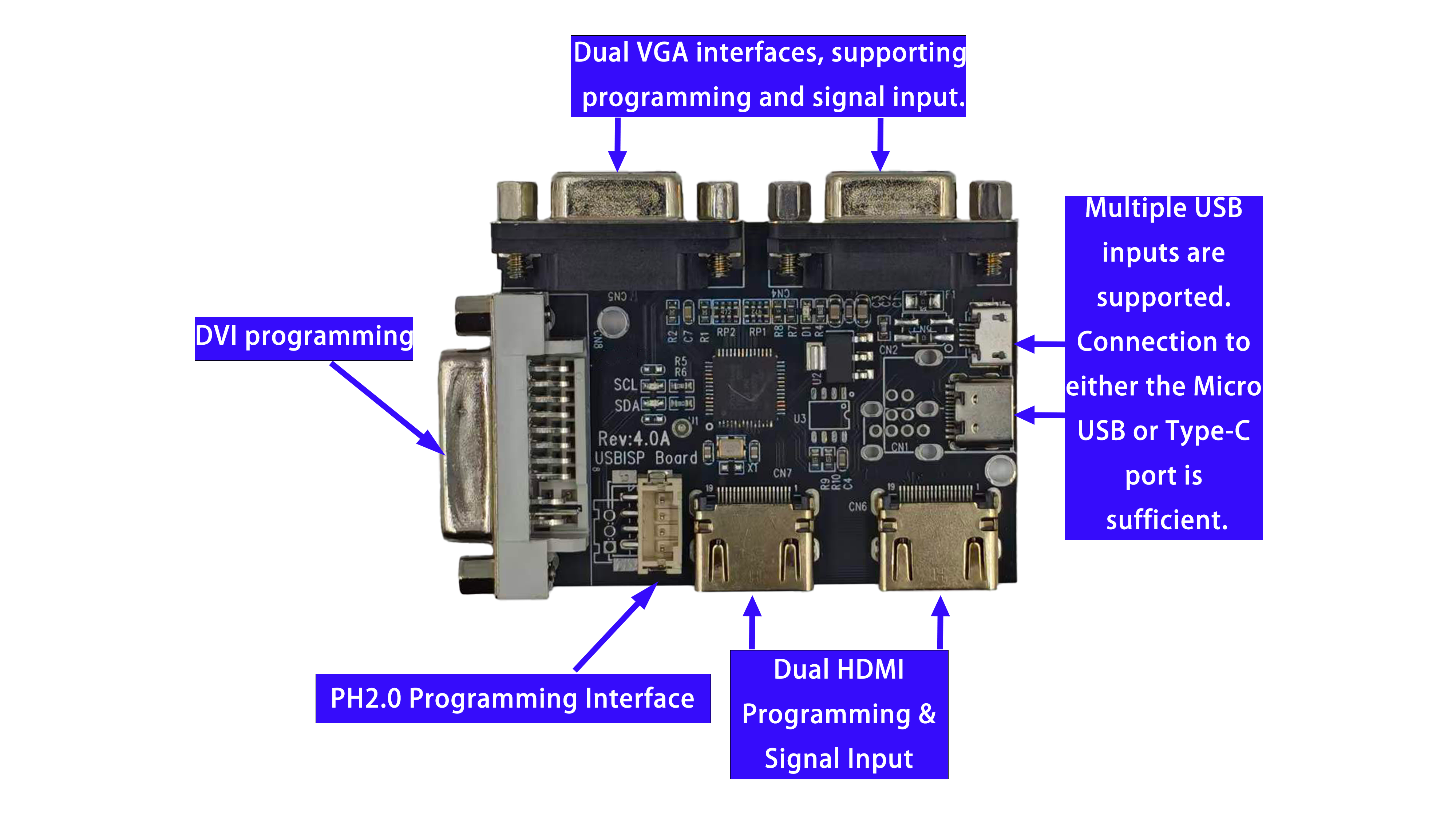

●Versatile Interfaces: Equipped with 2×VGA, 2×HDMI, 1×DVI, and a PH2.0 programming port.
●Power Supply: Operates on 4.5–5.5V (standard USB 5V power).
●Industrial-Grade Stability: Wide operating temperature range from -30℃ to +80℃.
●Efficient Performance: Ultra-low power consumption, stable communication, and user-friendly operation.
●Visual Diagnostics: Includes LED indicators for Power, SCL, and SDA status.
●Compact Design: Ideal for mass production, maintenance, and field service.
Safety & Usage Notes：
●Power Supply: Use a 5V power supply only. Do not apply higher voltage to prevent damage.
●Cabling: Keep programming cables short and secure to ensure stable signal transmission.
●Connection: Verify correct connections before operation to avoid damaging the display.
●Interference: Use proper shielding to prevent Electromagnetic Interference (EMI).
●Grounding: PCB mounting holes are connected to Ground (GND) for safety.
Please contact us immediately to obtain a quotation for the programmer.
