SKY2680HV-V9.1

Input Interface	HDMI/VGA
Input Voltage	DC 12V
Backlight Output Voltage	9~12V
Max Resolution	1920 X 1200
Output Interface	LVDS FFC 40pin/TTL FFC 50pin/LVDS 30 pin Dupont interface
LVDS Signal Voltage	3.3V/5V/12V
Operating Temperature	-20℃~+70℃

Introduce
List

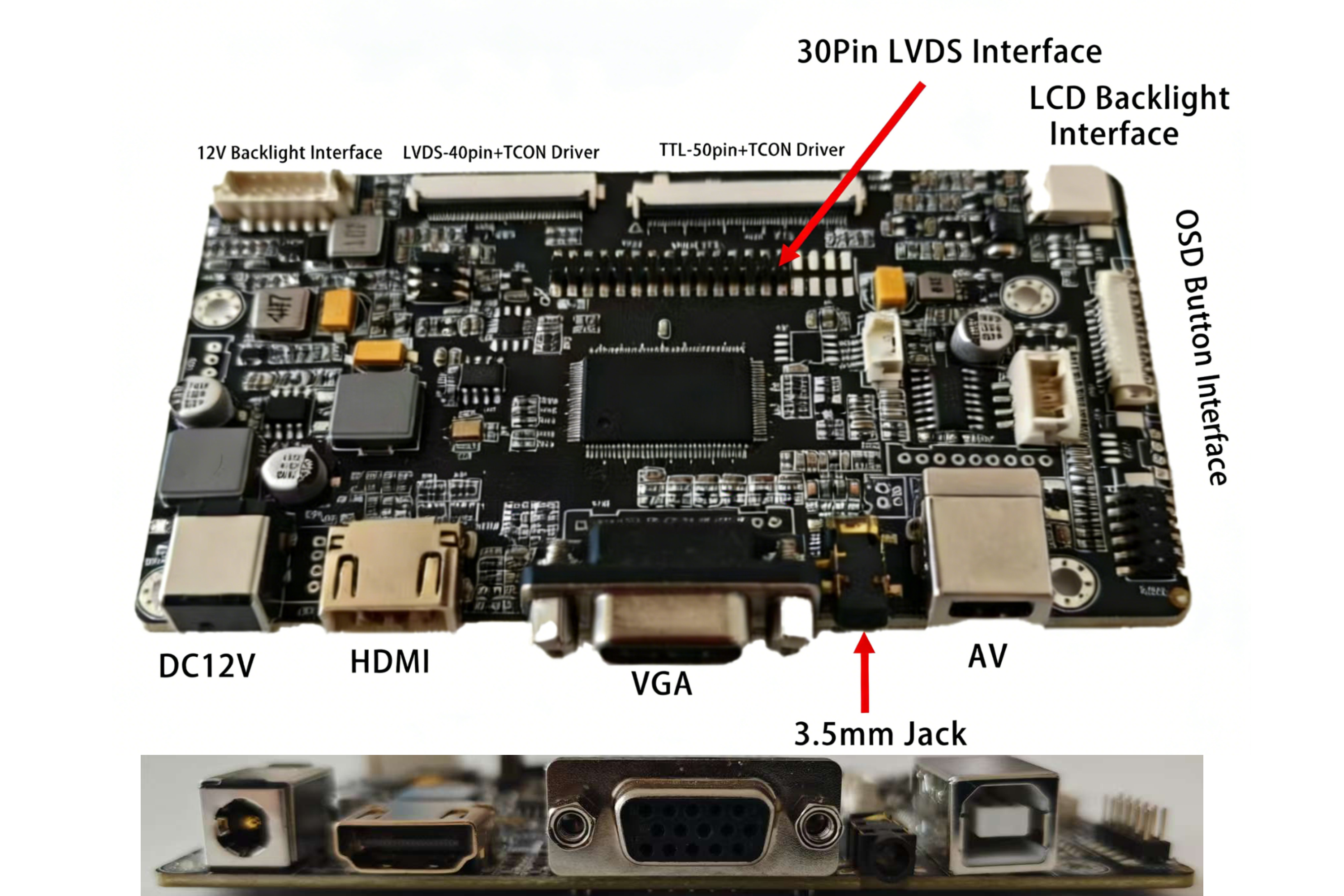

This is an industrial-grade digital LCD driver board, primarily designed to convert TTL/LVDS signals to HDMI/VGA interfaces. It supports a maximum resolution of 1920x1200 and operates within a temperature range of -20℃ to +70℃.

The board offers selectable LVDS signal voltages of 3.3V, 5V, and 12V. For LED backlighting, it provides a standard 12V output as well as a wide voltage range option supporting 9V to 25V. The signal interfaces include a TTL FFC 50-pin, LVDS FFC 40-pin, and an LVDS 30-pin DuPont connector. It also supports an OSD button panel interface and an audio output.Input interfaces consist of HDMI and VGA, while the power input is DC 12V.

Built to withstand harsh environments, this high-specification driver board is specifically designed for industrial control products.

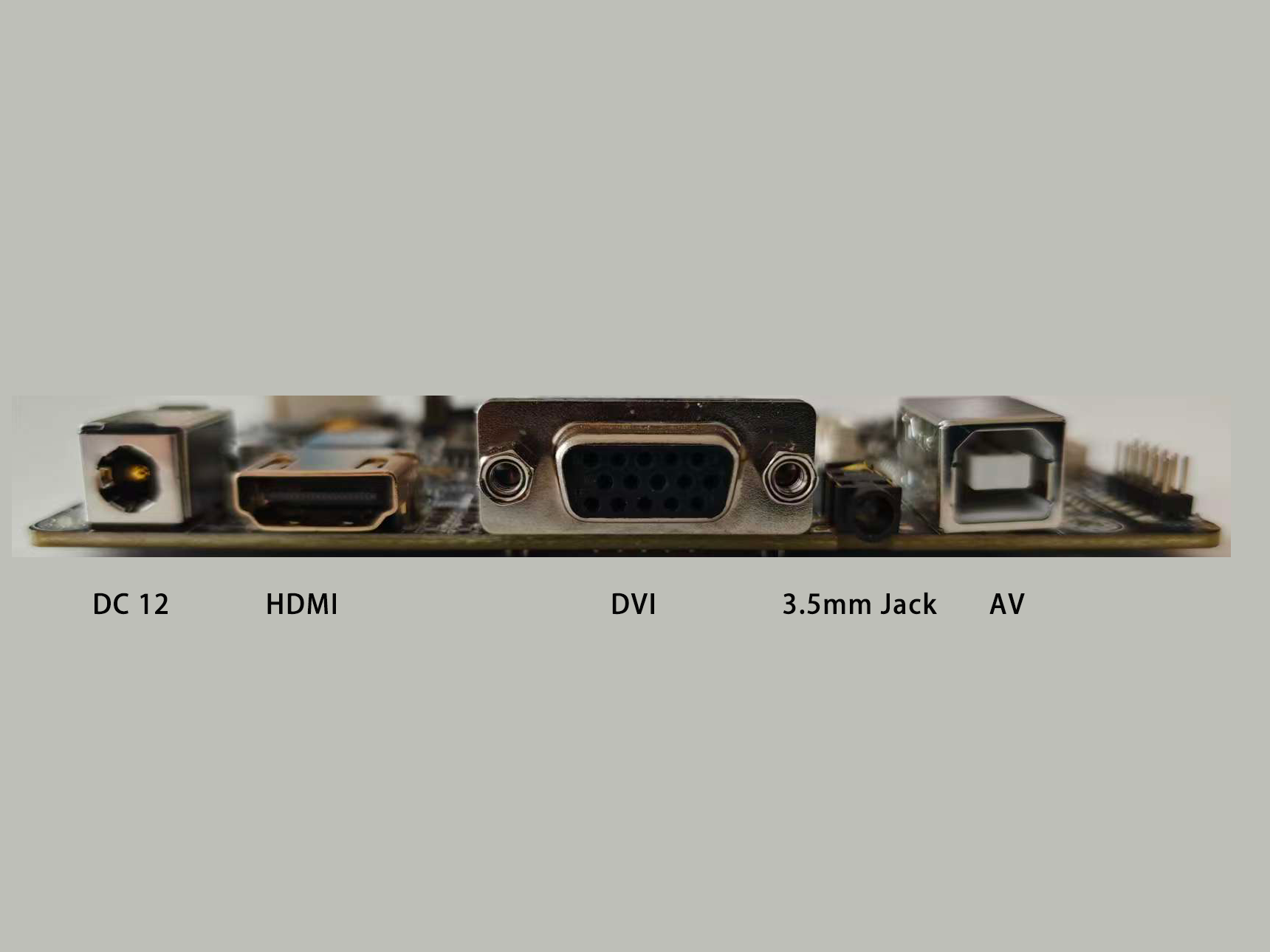

合图-标接口

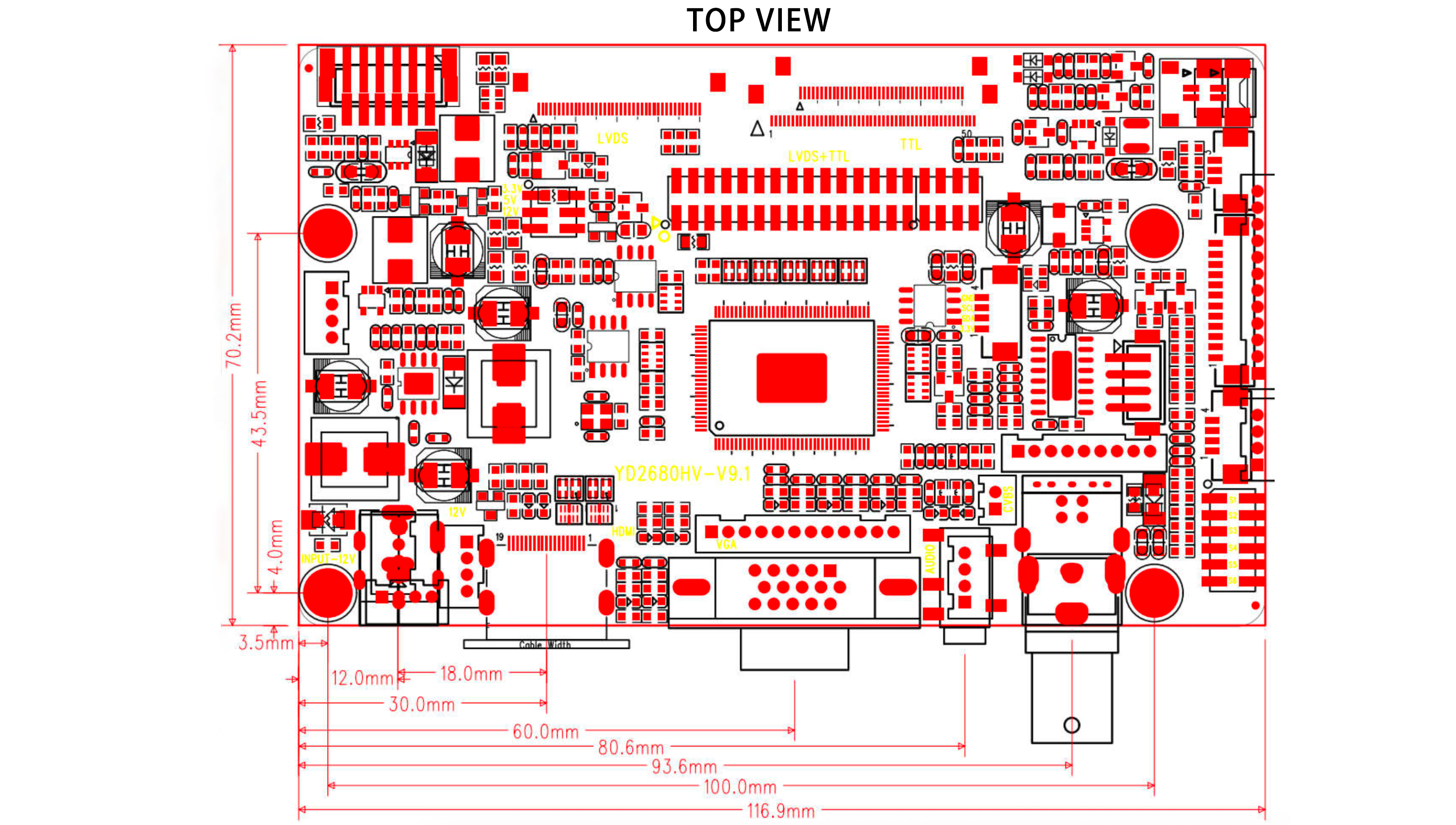

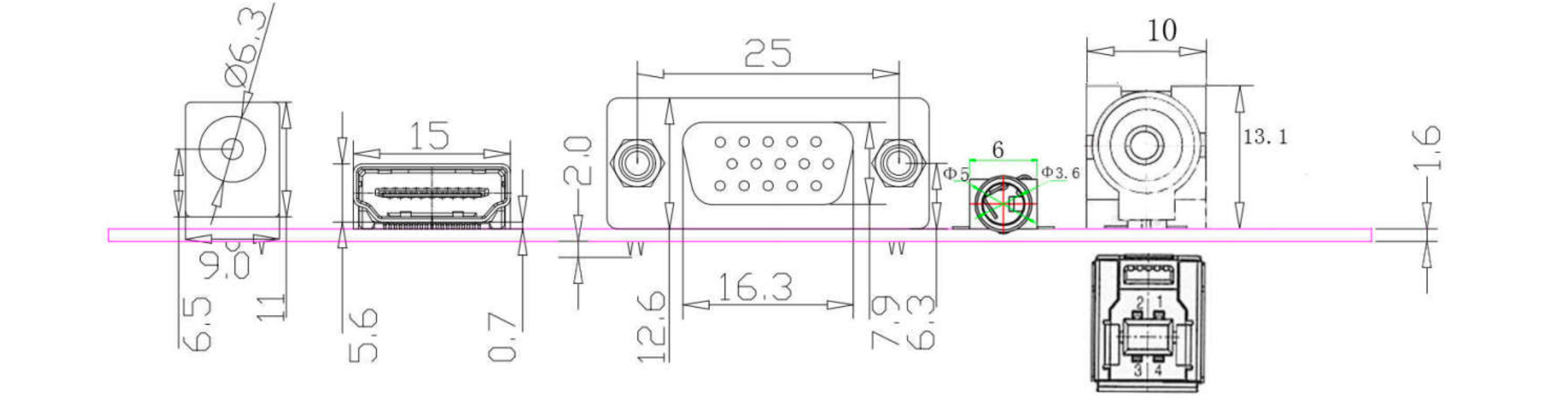

正面结构图
