Powering the board is a robust power regulation system that supports a wide DC input voltage range of 9V to 25V, with a typical operating voltage of 12V DC. This wide voltage compatibility eliminates the need for custom power adapters in most industrial setups, thereby simplifying system integration and reducing overall costs.
The board also provides flexible power output options for display panels, with selectable 3.3V, 5V, and 12V outputs via jumper configuration, supporting TFT-LCD screens up to 32 inches. This adaptability ensures compatibility with virtually all mainstream LVDS and TTL display panels on the market, ranging from low-power industrial screens to high-brightness medical displays.
2.Signal Interface: Input and Output

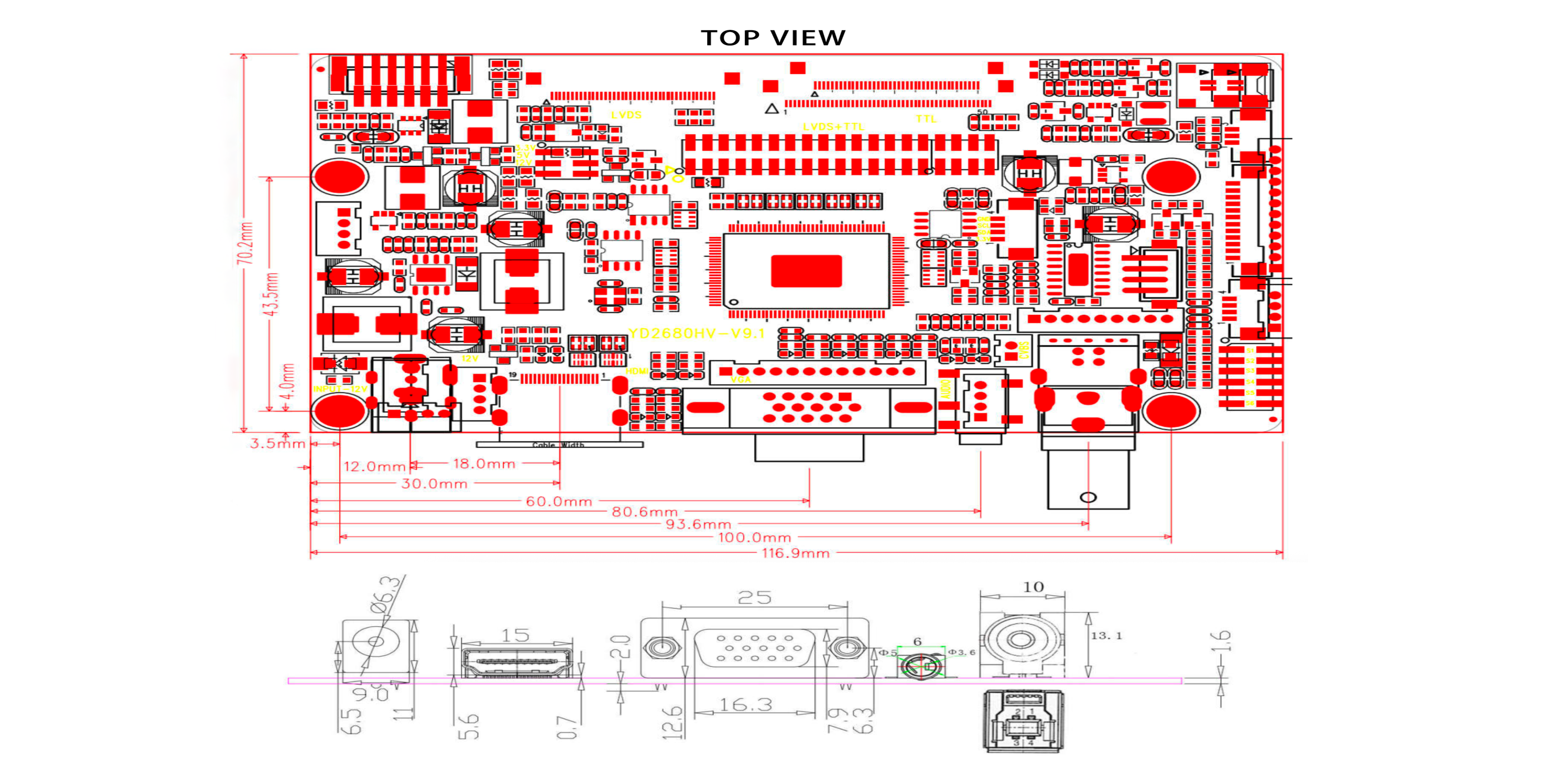

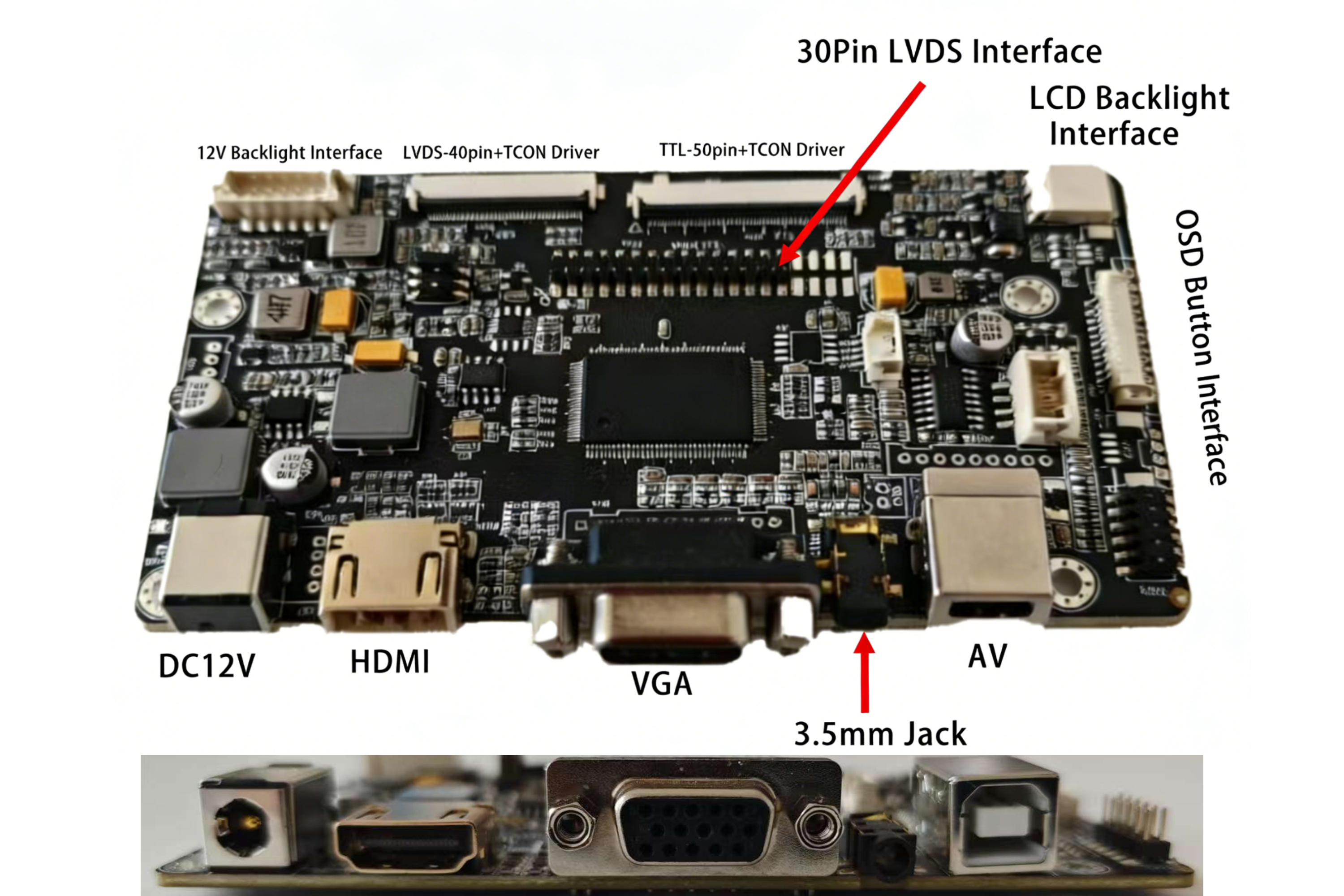

Its greatest strength lies in its comprehensive interface ecosystem, which combines multiple input options with high-performance output capabilities to deliver unmatched versatility.
①Input Interfaces
The board is equipped with three primary input interfaces, supporting both digital and analog-signals to ensure compatibility with virtually any host system:
●HDMI Input: Equipped with a high-definition HDMI port, it enables seamless connection to digital sources such as PCs, industrial controllers, media players, and embedded computers. Supporting HDMI 1.3 and VESA standards with resolutions up to 1920×1200, this interface delivers crisp, clear digital video signals with minimal signal loss, making it ideal for applications requiring high-resolution visual output.
●VGA Input: A standard VGA port provides backward compatibility with analog systems, including legacy industrial PCs, PLCs, and older instrumentation. This interface supports analog RGB signals with a resolution range of 800×480 to 1920×1200, ensuring seamless integration with existing infrastructure and reducing the need for hardware upgrades.
●Optional AV Input: A composite video input (PAL/NTSC format, default NC) extends compatibility with analog video sources such as security cameras, DVD players, and older video equipment, making the board suitable for surveillance and multimedia applications.
②Output Interfaces
On the output side, it offers two industry-standard display interfaces, enabling connection to a wide range of LVDS and TTL panels:
●Dual 8-bit LVDS Output: A high-speed LVDS (Low-Voltage Differential Signaling) interface supports dual 8-bit data transmission, delivering bandwidth-intensive video signals with exceptional clarity and minimal electromagnetic interference (EMI). This interface is compatible with most modern LVDS panels, supporting resolutions up to 1920×1200 and delivering smooth, flicker-free video for high-end applications.
●TTL 18-bit/24-bit Output: A flexible TTL (Transistor-Transistor Logic) interface supports both 18-bit and 24-bit color depth, providing compatibility with older TTL panels and cost-effective display solutions. This interface is configurable via jumper settings to match the panel’s color-depth and signal timing, ensuring seamless integration with a wide range of display technologies.
3.Industrial Excellence
Beyond its robust hardware and interface design, it incorporates a suite of advanced features tailored to the unique demands of industrial and professional applications.
●Integrated T-CON Circuitry
A standout feature of the YD2680HV-V9.1 is its built-in T-CON (Timing Controller) circuit. Unlike competing boards that require external T-CON modules, this board’s integrated T-CON eliminates the need for additional components, simplifying system design, reducing PCB space requirements, and lowering overall costs. The T-CON circuit directly drives LVDS/TTL panels without external timing control, ensuring precise signal synchronization and stable display performance—even in high-stress industrial environments.
●Advanced Backlight Control
The board features a dedicated backlight driver circuit that supports LED backlight panels with a voltage range of 9V to 25V DC. Backlight power can be configured for 5V or 12V operation (default 12V) via jumper settings, and PWM (Pulse-Width Modulation) brightness control allows precise adjustment of backlight intensity to match ambient lighting conditions. This feature is particularly valuable for applications such as industrial control panels (where visibility in low-light environments is critical) and medical devices (where adjustable backlight reduces eye strain during long monitoring sessions).
●Flexible Configuration and User Control
it offers intuitive configuration through onboard jumper caps, allowing users to easily adjust display parameters such as resolution, color depth, and power output without complex software or firmware modifications. Jumpers are clearly labeled on the PCB, simplifying setup even for non-technical users. Additionally, the board supports an OSD (On-Screen Display) interface, enabling real-time adjustment of display settings (brightness, contrast, resolution, etc.) directly from the screen. An infrared (IR) remote control interface is also available as an option, providing convenient wireless control for applications where physical access to the board is limited.
●Wide Operating Temperature and Reliability
Designed for industrial use, it operates reliably in a temperature range of -20°C to 70°C, with a storage temperature range of -30°C to 70°C. This wide temperature tolerance makes it suitable for deployment in harsh environments such as outdoor surveillance systems, industrial automation facilities, and medical equipment that must operate 24/7 without downtime. The board also features EMC (Electromagnetic Compatibility) filtering to resist interference from industrial machinery, ensuring stable performance in high-EMI environments. With a Mean Time Between Failures (MTBF) of over 100,000 hours, it delivers long-term reliability, reducing maintenance costs and system downtime for critical applications.
●Quality Assurance
For global customers, compliance with international standards is non-negotiable. It is designed and manufactured to meet strict quality and safety standards, including RoHS (Restriction of Hazardous Substances) compliance, ensuring it is environmentally friendly and suitable for use in global markets.
4.Target Applications: Versatility Across Industries
Its combination of flexibility, performance, and reliability makes it suitable for a wide range of industrial, medical, security, and instrumentation applications:
●Industrial Automation
In industrial automation, the board powers control panels, HMI (Human-Machine Interface) terminals, and monitoring systems for manufacturing equipment, assembly lines, and process control systems. Its wide temperature tolerance, EMI resistance, and flexible interface options ensure reliable operation in harsh factory environments, while its compact design fits seamlessly into industrial enclosures.
●Medical Equipment
For medical devices such as patient monitors, diagnostic imaging systems, and laboratory instruments, it delivers high-resolution, low-noise display performance. Its integrated T-CON circuit and precise backlight control ensure clear, accurate visualization of critical medical data, while its RoHS compliance meets the strict environmental standards of the healthcare industry.
●Security Surveillance
In security systems, the board drives display panels for DVRs (Digital Video Recorders), NVRs (Network Video Recorders), and surveillance monitoring stations. Its HDMI and VGA inputs support connection to multiple video sources, while its LVDS output delivers high-definition video for real-time monitoring of critical areas.
●Professional Instrumentation
For scientific instruments, test equipment, and measurement devices, it provides precise, stable display control. Its flexible resolution support accommodates a wide range of instrumentation displays, from small digital readouts to high-resolution data visualization panels, making it ideal for laboratory, research, and field-testing applications.
5.Product Summary
It is more than just an LCD controller board—it is a comprehensive display solution that combines cutting-edge technology, industrial-grade reliability, and global compatibility to meet the diverse needs of modern system integration. Whether you are developing a small embedded display or a large-scale industrial monitoring system, this board delivers the flexibility, performance, and ease of use required to succeed in today’s global marketplace. Backed by rigorous quality control and expert technical support, it is the ideal choice for OEMs and system integrators looking to elevate their display solutions with a trusted, high-performance component.
For global customers, partnering with its manufacturer ensures access to customized support, bulk ordering options, and timely delivery—making it a seamless addition to any international project. In the ever-evolving world of industrial display technology, it stands as a testament to innovation, reliability, and global excellence.
